Proven technology to bond your most beautiful displays

Discover power that goes way beyond bonding.

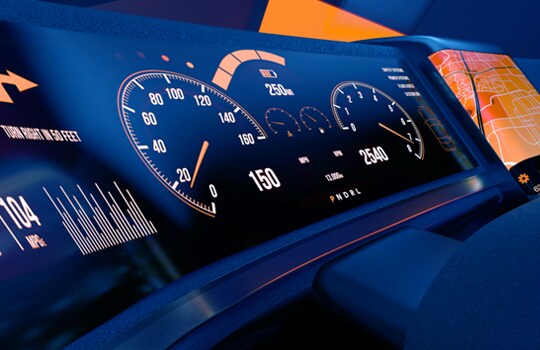

  • Automotive digital display panel image

    Like no one else, 3M can help you with your bonding challenges in automotive display design and assembly. Our range of bonding solutions is built on nearly a century of adhesive development. We can enhance your power to take on today’s most difficult challenges: the ever-growing mix of dissimilar substrates, curved surfaces, narrow and ultra-thin bond lines and more.

  • Innovation Worth Sharing presentation with Nelson Goncalves Pimentel
    Nelson Goncalves Pimentel, 3M Company, “How 3M Can Protect Your Automotive Display”

    Watch our expert discuss the changing automotive display trends and implications for display bonding. This presentation describes the current requirements and solutions, including test methods for predicting and simulating the effects of head and rear impact, reducing stress and improved sealing.


  • 3M Display bonding

    Design. Performance. Safety.

    Design. Performance. Safety.

    Apply nearly a century of adhesive expertise and technology to your information display design and assembly. Our technology is here to help you meet todays most complex design challenges, while protecting critical electronics.



    Apply nearly a century of adhesive expertise and technology to your information display design and assembly. Our technology is here to help you meet todays most complex design challenges, while protecting critical electronics.




3M™ Thin Bonding Tape

Bond flexible printed circuits to keep them in place.

3M™ Thin Bonding Tape for FPC Bonding

Bond flexible printed circuits to keep them in place.

3M™ Optically Clear Adhesive (OCA)

Enhances display contrast and mechanical robustness while optically clear bonding to glass.

3M™ VHB™ Tapes/3M™ Scotch-Weld™ Liquid Adhesives

Bond display cover to housing, sealing the display from moisture and dirt while absorbing shocks.

Triangle 3M mesh background display cover bonding heading

Display Cover Bonding

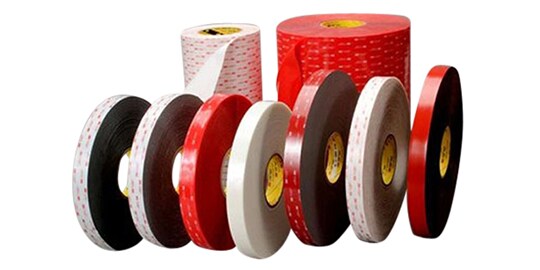

  • 3M VHB tapes for instrument panel bonding
    3M™ VHB™ Tapes

    Combining the strength and reliability of an acrylic adhesive with the conformability of an acrylic foam core, our 3M™ VHB™ Tapes bring a unique balance of performance to information displays:


    • Shock and Vibration Control: this viscoelastic material absorbs shocks and relax stress for better impact resistance, cyclic fatigue resistance and greater design flexibility
    • Bonding: Strong adhesion strength and heat resistance
    • Premium sealing: 100% closed-cell construction to seal out contaminants, moisture and chemicals
    • Tape format: Convenient to use and can be die-cut to pre-formed shapes


    3M™ VHB™ Tape 5952 Family: Very conformable acrylic foam core tapes deliver a great balance of adhesion on a variety of substrates, impact resistance and sealing properties.

    3M™ VHB™ Tape 4941 Family: These conformable acrylic foam core tapes feature good static shear properties for superior holding power.

    3M™ VHB™ Tape VHX-1701 Family: Thin firm core acrylic foam tapes with high holding power and resistance to spring-back force at high temperatures.

    3M™ VHB™ GPH Family: Thick conformable acrylic foam core tapes bond a variety of substrates and has superior high-temperature performance.

  • 3M urethane structural adhesive 604NS
    3M™ Liquid Adhesives

    With plenty of strength even for bond lines below 0.5mm wide, our liquid urethane adhesives are excellent for thin device designs and assemblies. These one-part adhesives deliver the reworkability of a PUR – often critical for recovery of valuable displays – but can be laminated as a PSA for immediate handling strength.

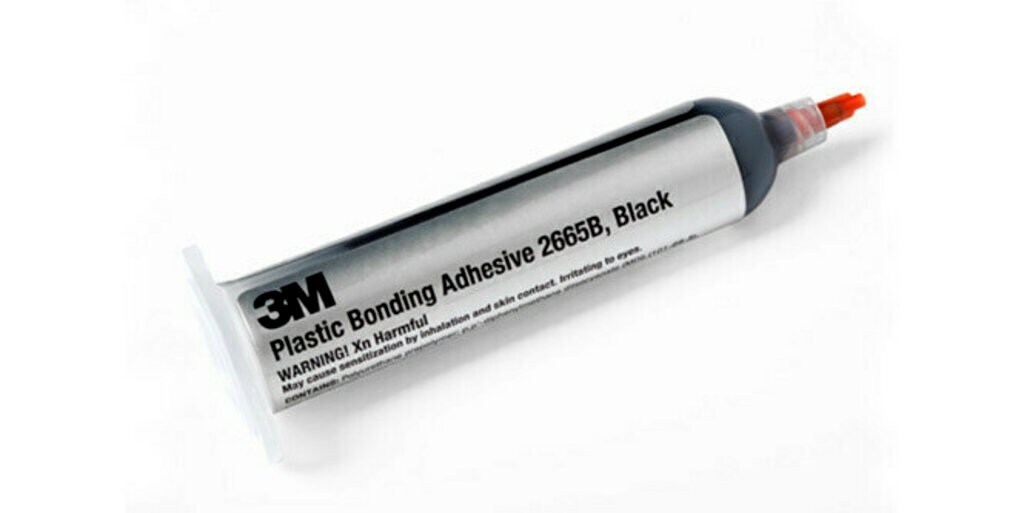

    3M™ Plastic Bonding Adhesive 2665B

    3M™ Scotch Weld™ PUR Adhesive 2710p Black

    3M™ Scotch Weld™ Urethane Adhesive DP604NS

Triangle 3M mesh background for optical bonding heading

Optical Bonding

3M™ Optically Clear Adhesives

Triangle 3M mesh background for display component bonding heading

Display Component Bonding

Our wide array of tape solutions combines the simplicity of pressure-sensitive adhesive (PSA) with strength, conformability, anti-lift properties, impact resistance and optical clarity. Many of our instrument panel adhesive tapes are suitable for difficult-to-bond surfaces including polycarbonate, polyamides and polyethylene terephthalate.

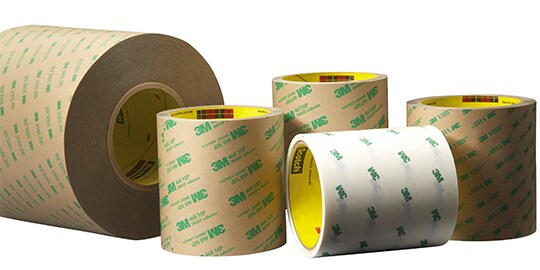

  • Group of 3M adhesive transfer tapes, double coated tapes,  95000, 95100
    3M™ Impact Resistant ​Adhesive Transfer Tapes 95000 Series and Double Coated Tapes 95100 Series

    Formulated specifically for higher resistance to impact – maintaining critical stability at expressway speeds – these tapes have excellent vibration damping and are very conformable, enabling flexibility in design. They also combine high peel adhesion with high bonding strength to a wide variety of materials, so electronic displays and components can more easily withstand the constant jostling and impact the road hands out.

    3M™ Impact Resistant Adhesive Transfer Tape 95005

    3M™ Impact Resistant Adhesive Transfer Tape 95010

    3M™ Impact Resistant Double Coated Tape ​95105

    3M™ Impact Resistant Double Coated Tape ​95110

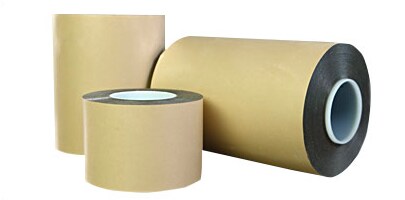

  • 3M conformable double coated tape, 93420, 93425, 93430
    3M™ Conformable Double Coated Tape 934XX

    This technologically-advanced 3M tape enables performance levels previously not possible for a Double Coated Tape with a PET carrier. These proprietary technologies make the tape more drop resistant and shock absorbing, and offer an exceptional balance of properties including excellent anti-lifting, great chemical resistance, temporary removability and versatile adhesion to low and high-surface-energy materials.

    3M™ Conformable Double Coated Tape 93420

    3M™ Conformable Double Coated Tape 93425

    3M™ Conformable Double Coated Tape 93430

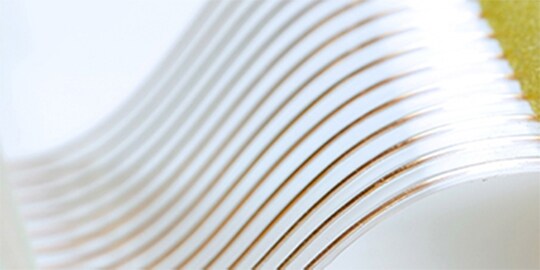

  • 3m tapes for Flexible Printed Circuits (FPC)
    3M™ Adhesive Transfer Tapes and Double Coated Tapes for Flexible Printed Circuits (FPC)

    There is no one-size-fits-all solution for flex bonding. Your success requires a reliable FPC bonding method specific to your intricate design. 3M flexible circuit bonding solutions can address your specific challenges, including hard-to-bond surfaces, anti-lifting on curved substrates, or high temperature resistance.

    3M™ Adhesive Transfer Tape 9471LE

    3M™ Double Coated Tape 93005LE

    3M™ Adhesive Transfer Tape F9460PC

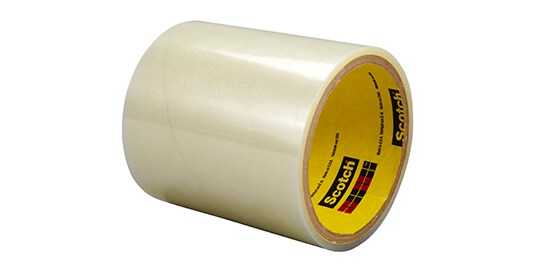

  • 3M UCT ultra clear tape
    3M™ Ultra Clear Double Coated Tape UCTxx

    This tape is excellent for products that are backlit or require light transmission. It is so clear, it practically disappears – the tape delivers 90% light transmission with only 1.1% haze, ideal for display screens and touchscreens throughout the information display system. Ultra-clear tape features a polyester film carrier for dimensional stability and a high-tack adhesive for good shear holding power.

    3M™ Ultra Clear Double Coated Tape UCT-10

    3M™ Ultra Clear Double Coated Tape UCT-30

    3M™ Ultra Clear Double Coated Tape UCT-50


Display Bonding Technical Data Sheets

View the most frequently requested Display Bonding Technical Data Sheets (TDS) at the link below.


Work with an expert

Tap into 3M’s deep automotive technology by connecting now with the experts who help solve what seems unsolvable.
